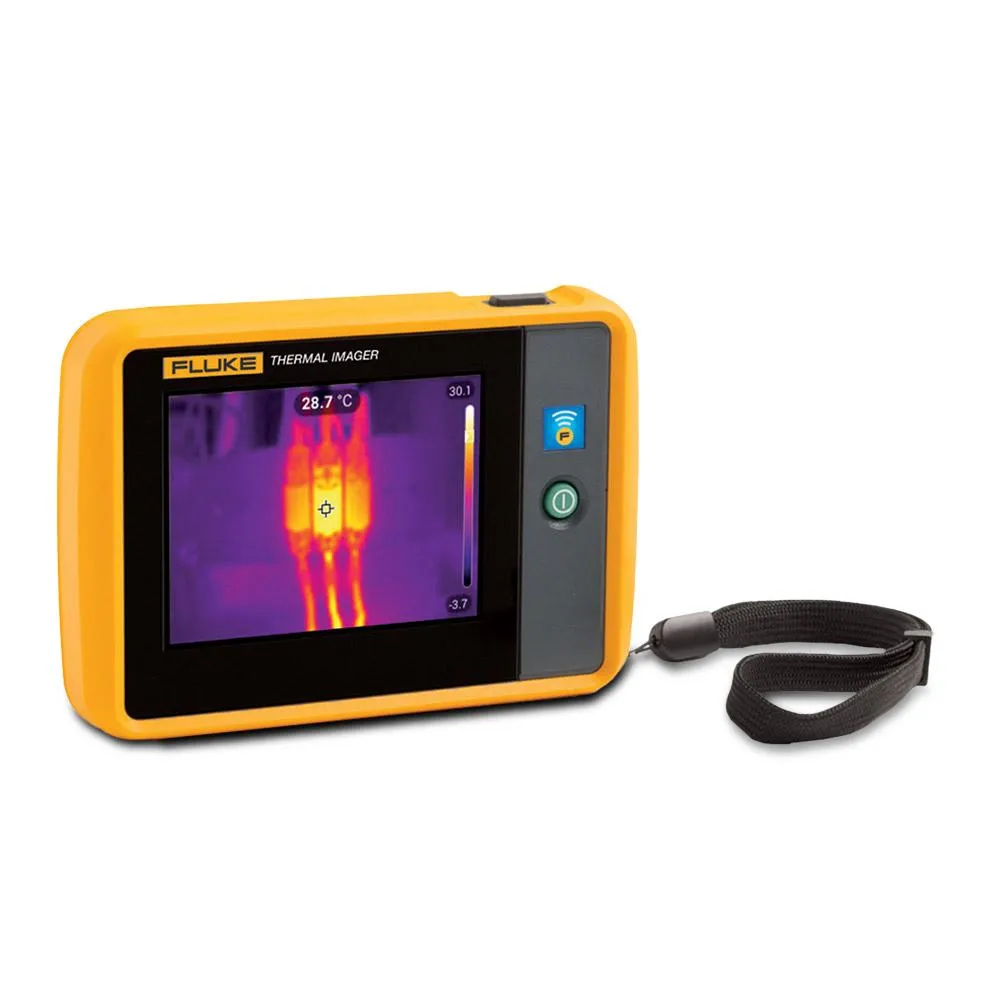

The new Fluke Pocket Thermal Imager puts the power to minimize downtime in everyone’s hands with the right tool at the right time.

The bigger the problem, the faster you need to solve it.  As the first line of defense for easy troubleshooting, the PTI120 empowers you to stop fighting fires on the job, and start preventing them.

Includes:

• USB cable
• Soft transport bag
• Adjustable lanyard
• Free download: Fluke Connect software and user manual

Features:

• Continuous touchscreen IR-Fusion™, slide your finger across the screen to adjust the setting
• Automatically organize and file thermal images with Fluke Connect™ Asset Tagging
• Fully radiometric thermal imager with 120 x 90 infrared resolution
• 3.5" LCD touchscreen display for easy troubleshooting
• Can withstand drop up to 1 meter
• Water and dust resistant—IP54 enclosure rating

Specifications:

• Infrared resolution: 120 x 90 (10,800 pixels)
• IFOV (spatial resolution): 7.6 mRad, D:S 130:1
• Field of View: 50°H x 38°V
• Minimum focus distance: 50cm
• Focus system: Fixed focus
• Display: 3.5" touchscreen
• Display resolution: 320 x 240 LCD
• Thermal sensitivity(NETD): 60mK
• Frame rate: 9 Hz
• Data transfer: Mini USB
• Wireless connectivity: Yes
• Memory: >2GB internal flash memory
• Battery: Internal rechargeable lithium ion battery
• Battery charging time: 1.5 hours approx.
• Temperature measurement: -20° to 400°
• Safety: IEC 61010-1: Pollution degree 2
• Electromagnetic capability: EN 61326-1, CISPR 11: Group 1, Class A
• Dimensions (L x W x H): 25mm x 127mm x 89mm
• Weight: 0.233kg
