| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 19 CFM (538 L/Min.) |
| Alternate Mfr Part Number | OD6015-24HB |
| Approximate Thickness | 0.6 In. (15 mm) |
| Depth | 0.079" (2mm) |
| Dimensions | 2.362 x 2.362 x 0.591 In. (60 x 60 x 15 mm) |
| Fan Type | DC |
| Height | 2.362" (60mm) |
| Maximum Current | 150 |
| Noise Level | 37 dB |
| Power Dissipation | 2.2 |
| Power Rating | 2.2 W |
| Primary Type | Fan |
| Shop By | Factory Choice |
| Size, Approximate | 2.4 x 2.4 In. (60 x 60 mm) |
| Special Features | Brushless DC, Polarity Protected, Locked Rotor Protected, Auto Restart Motor |
| Standards | UL, cUL, TUV, CE |
| UPC Code | 5056112037798 |
| Voltage Rating | 24 VDC |
| Warranty | 3 Year Warranty |
Overview

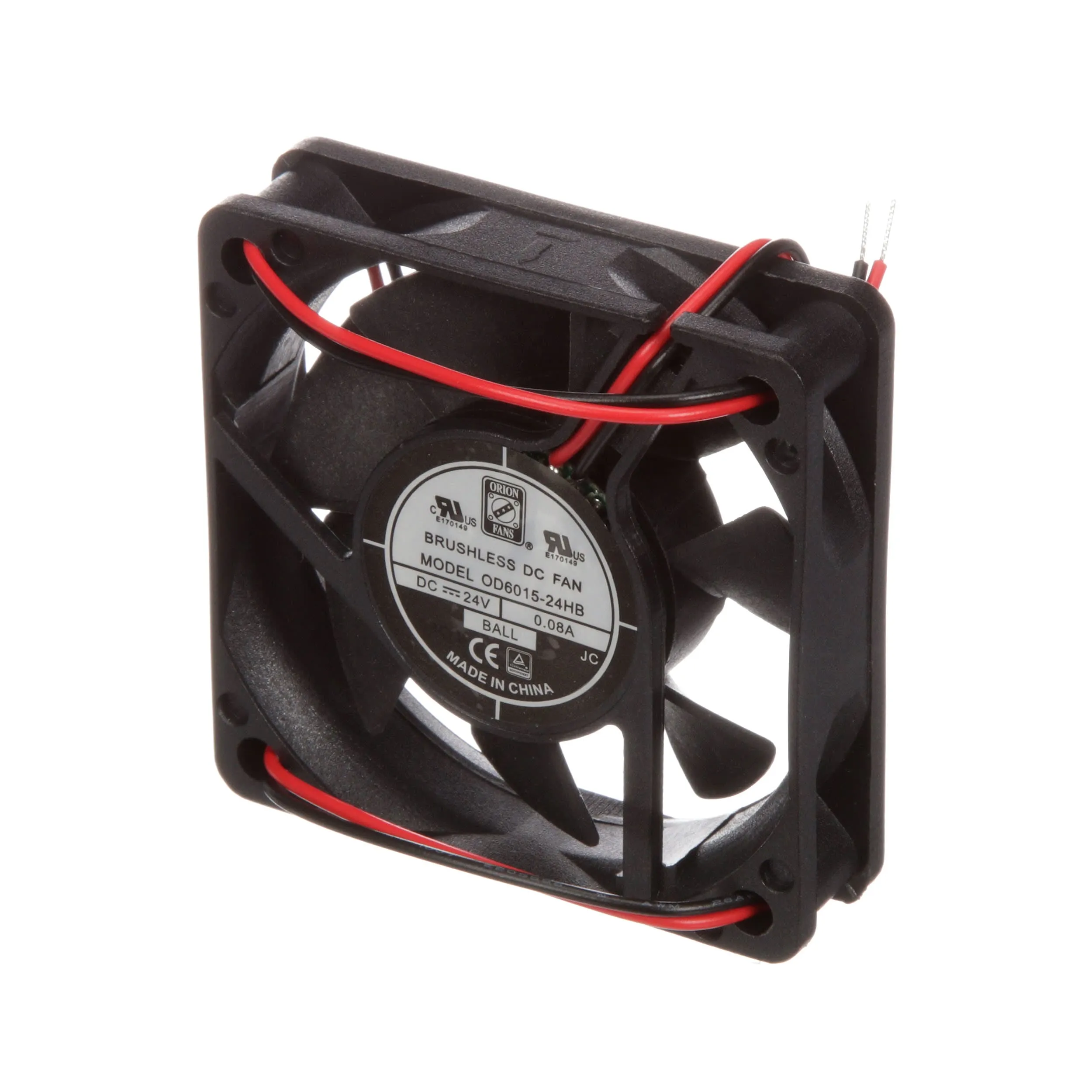

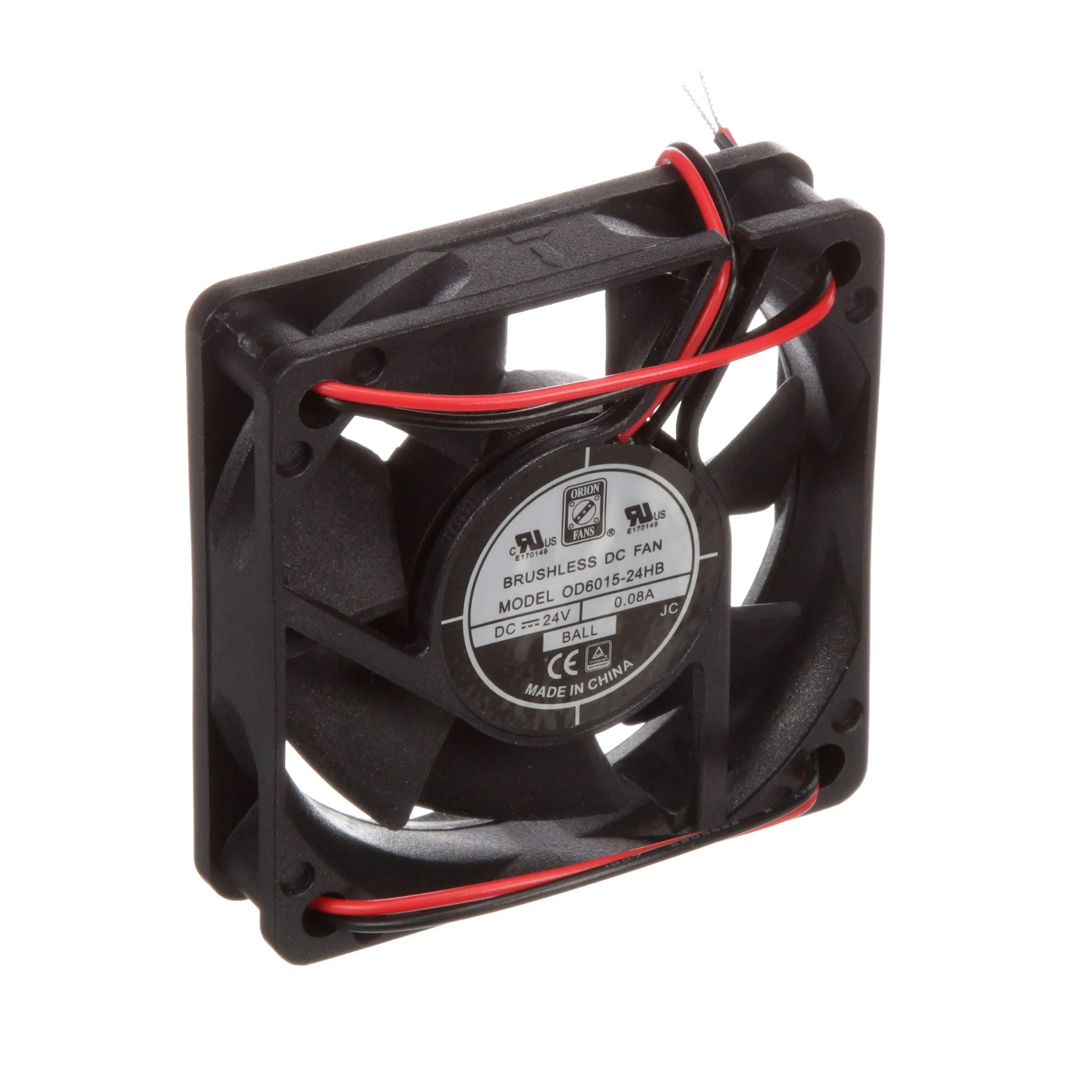

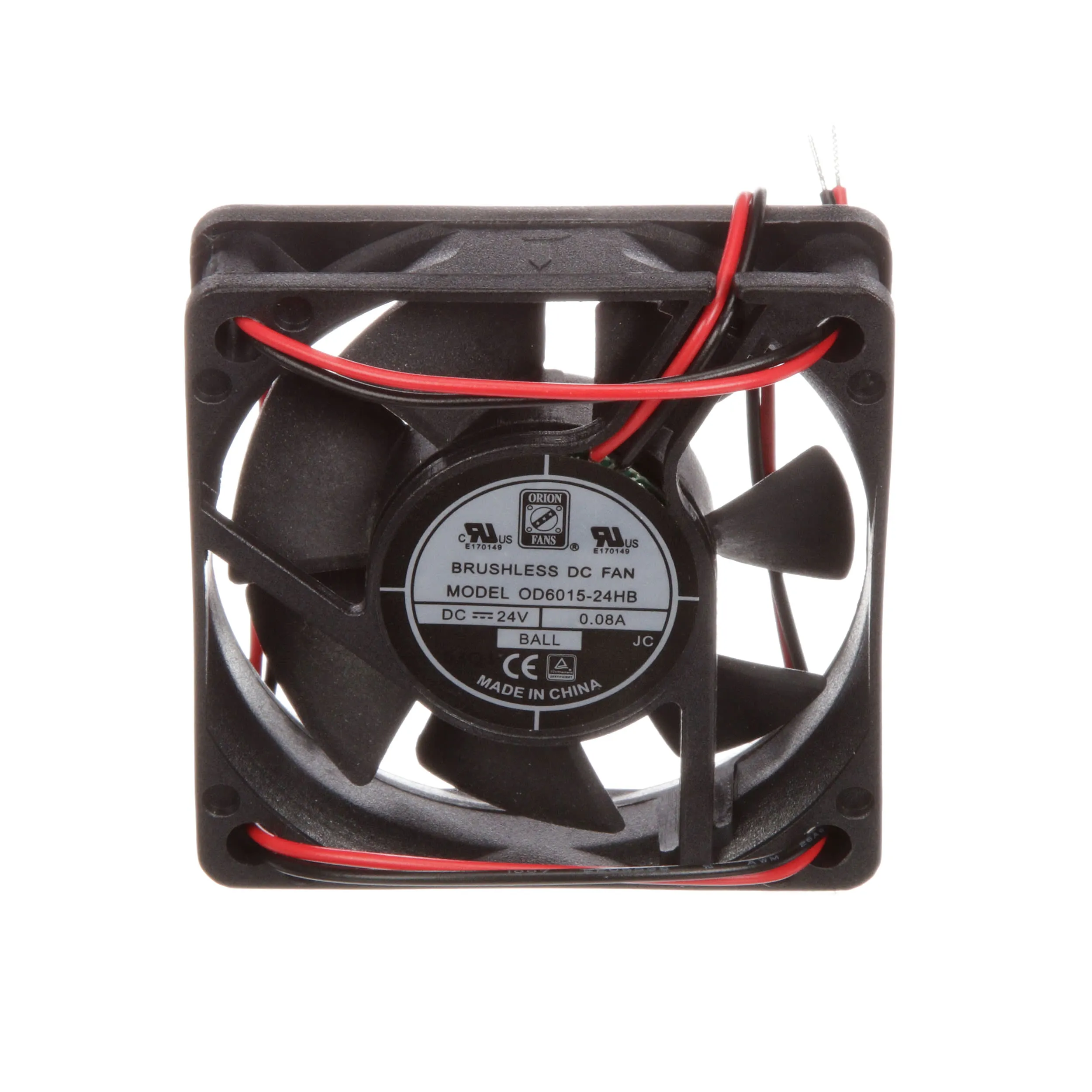

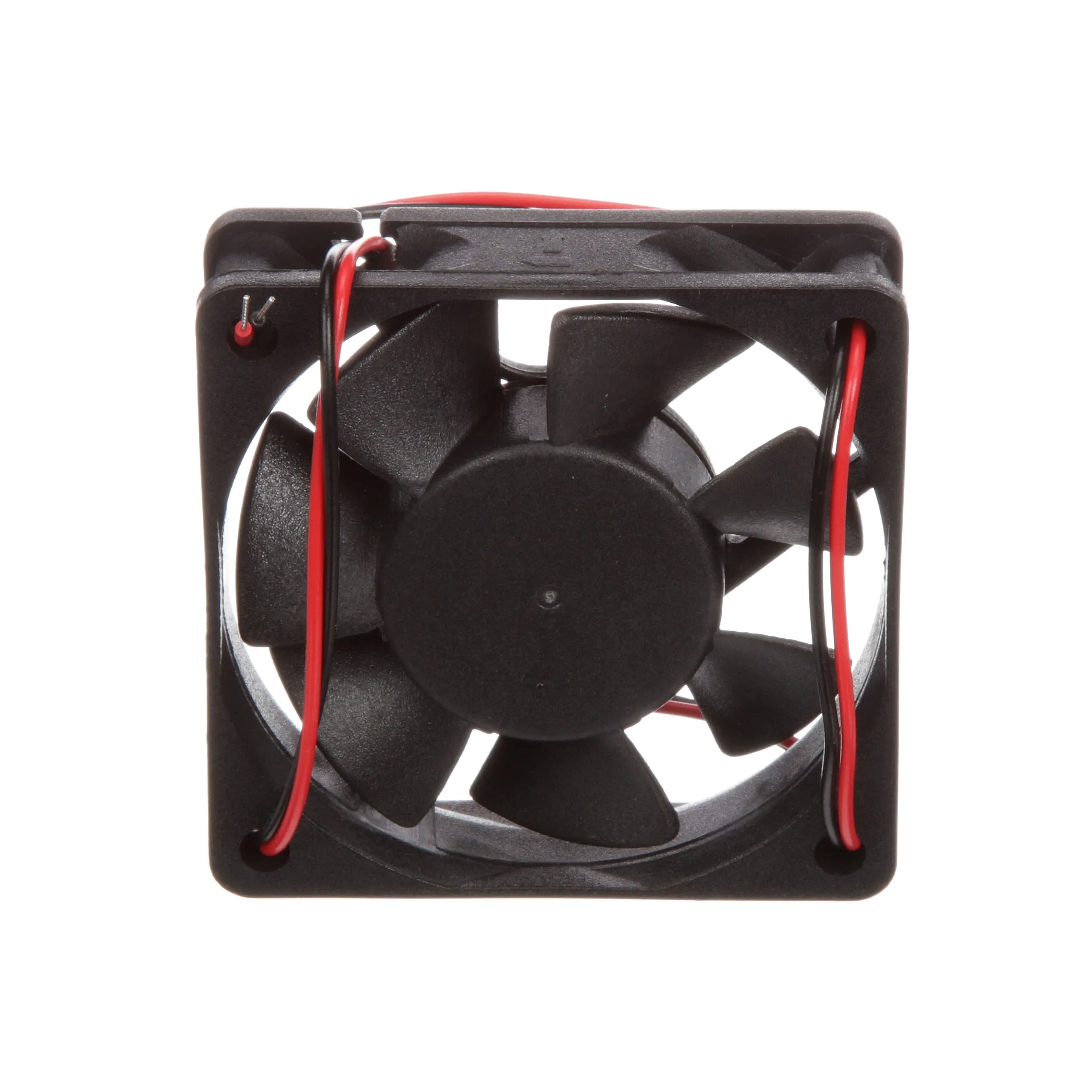

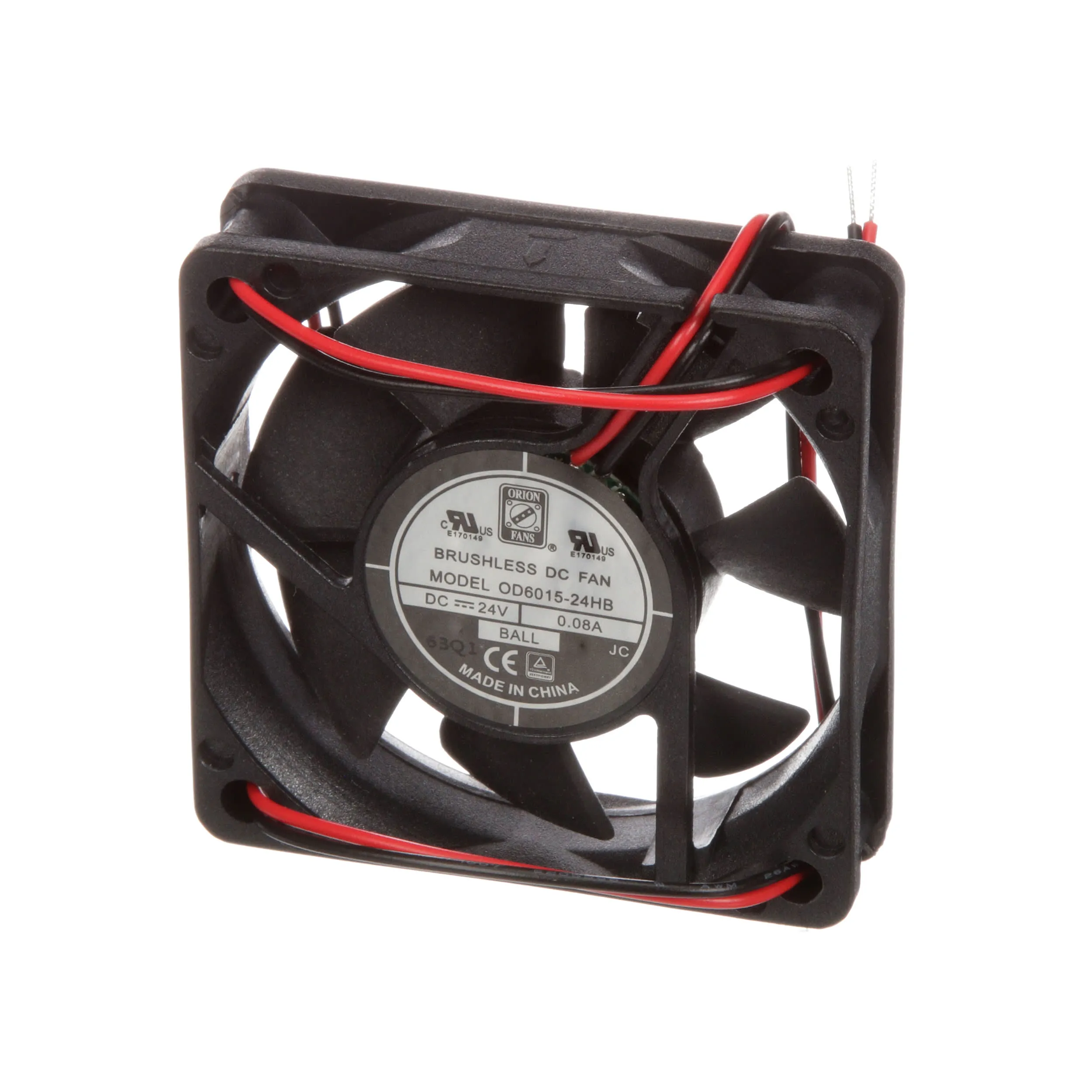

RS Brushless High Performance Ball Bearing Fan
RS brushless high performing ball bearing fans provide a general purpose, compact, cost-effective and reliable solution to a variety of requirements.
